Measuring points

The measuring point menu of BBSoft® makes it possible for you, to import and to export measuring point files very easily. The compilation of new measuring points is possible too, like the editing, the deletion or the searching for them. You can compile measuring points of all CAD-objects (CAD-points, block references, texts, arrows and polylines) automated.

Further features:

  • it is possible to assign every measuring point a symbol via the point code. You can also create individual symbols
  • measuring points can be connected to polylines dialog-controlled
  • miscellaneous measuring point files can be transferred in the specific BBSoft®-format (INP-file) with the help of a conversion table (IOC-editor)
  • measuring point recordings can be checked optionally for plausibility: equivalent points (with equal coordinates with tolerance specification, point number or point code) can be deleted or edited
  • measuring point heights can be released in relation to a base height
  • measuring point attributes can be highlighted with a background hatch pattern
  • the positions of the attributes can be shifted automatically or by hand: the affiliation to the point symbol doesn't get lost
  • all settings can be saved in one sample, thereby all measuring points can be presented uniformly in an office
  • a legend with a symbol and his description can be created with one click in the drawing
  • you can transfer Gauß-Krüger coordinates into ETRS coordinates
  • number of decimal places for the height attribute is individually adjustable
  • drawing of reference lines to the inscriptions of the attributes point number, -code und -height is possible

required modules: BB-VGR, BB-VPKB

  • Messpunkte

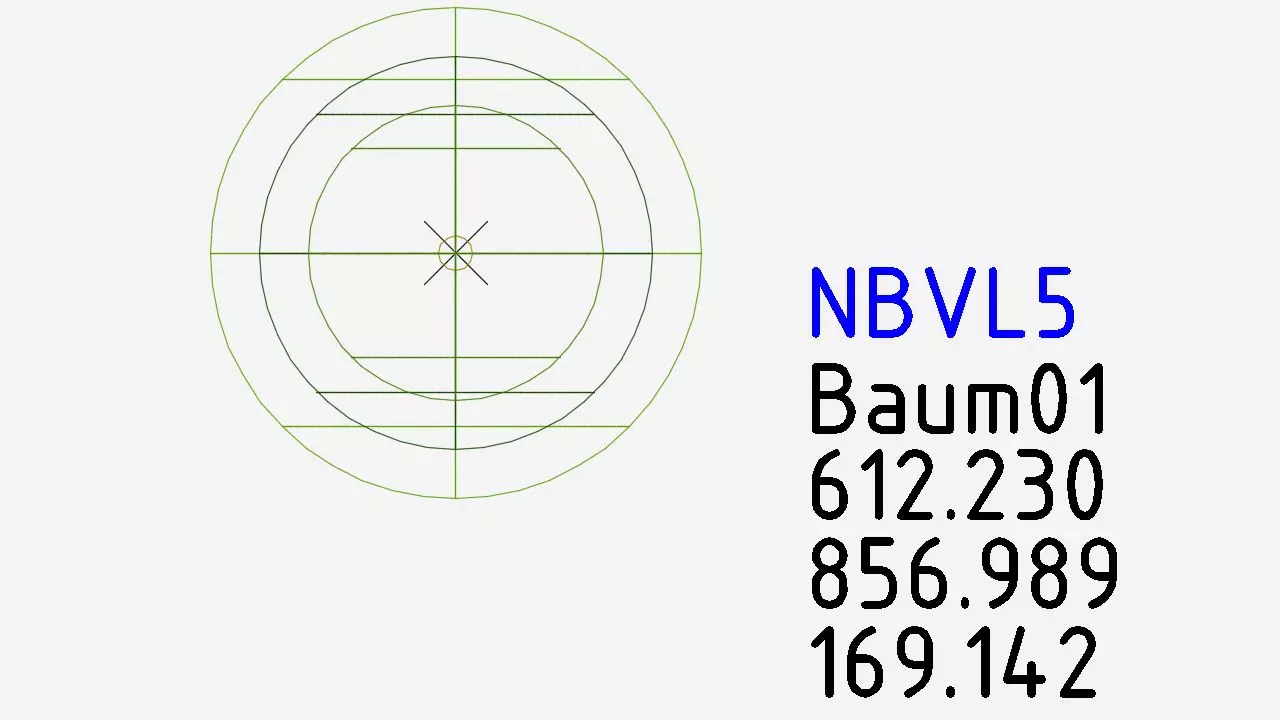

    measuring point

  • Messpunkte

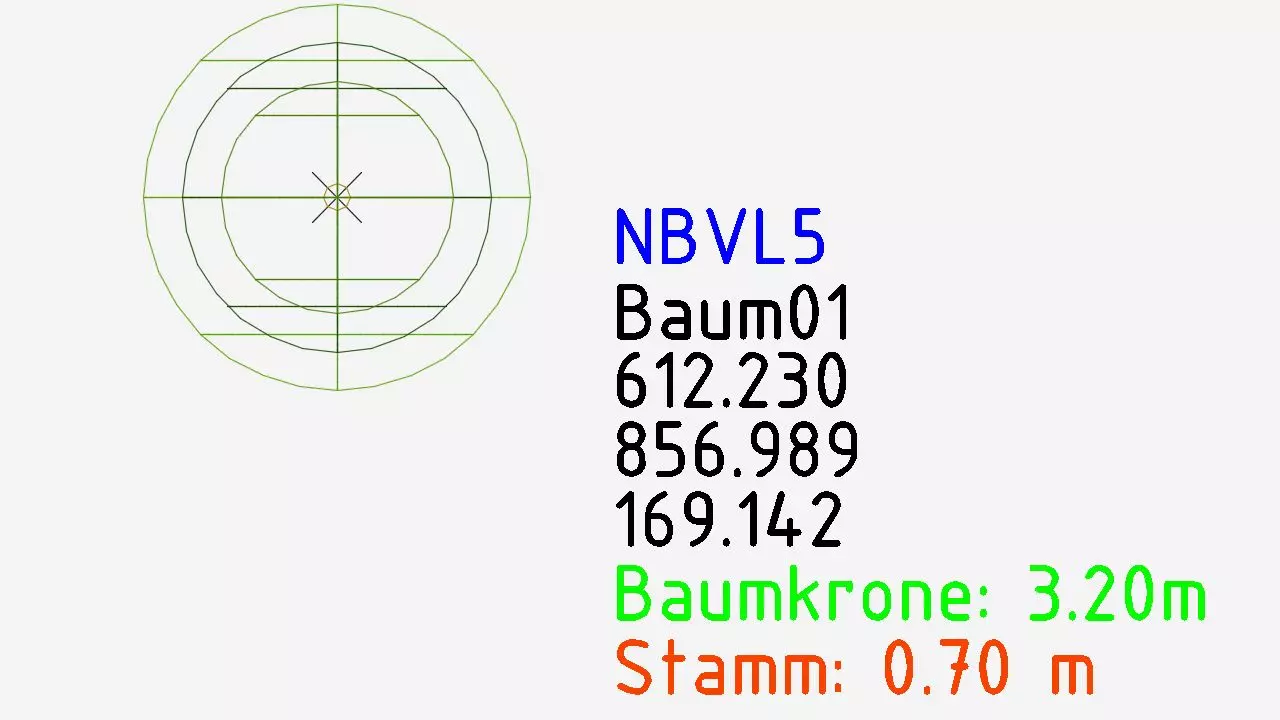

    measuring point with additional attributes

  • Messpunkte

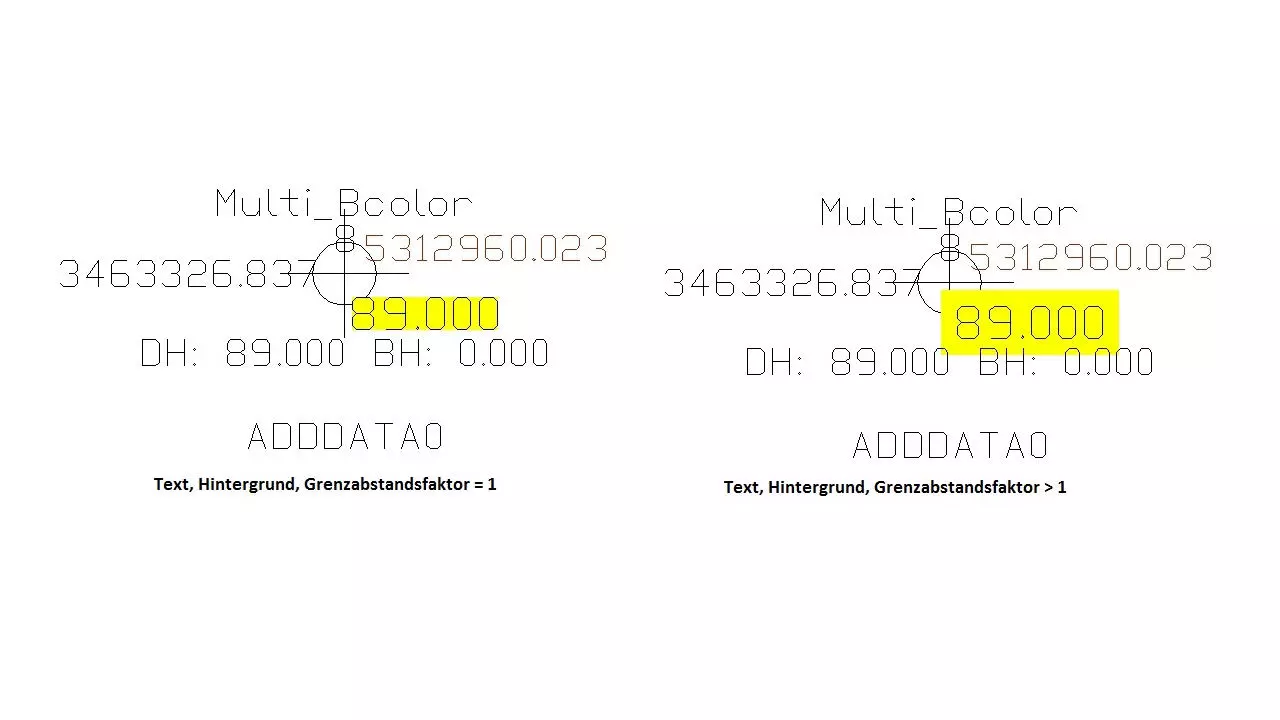

    measuring point with limit distance factor

  • Messpunkte

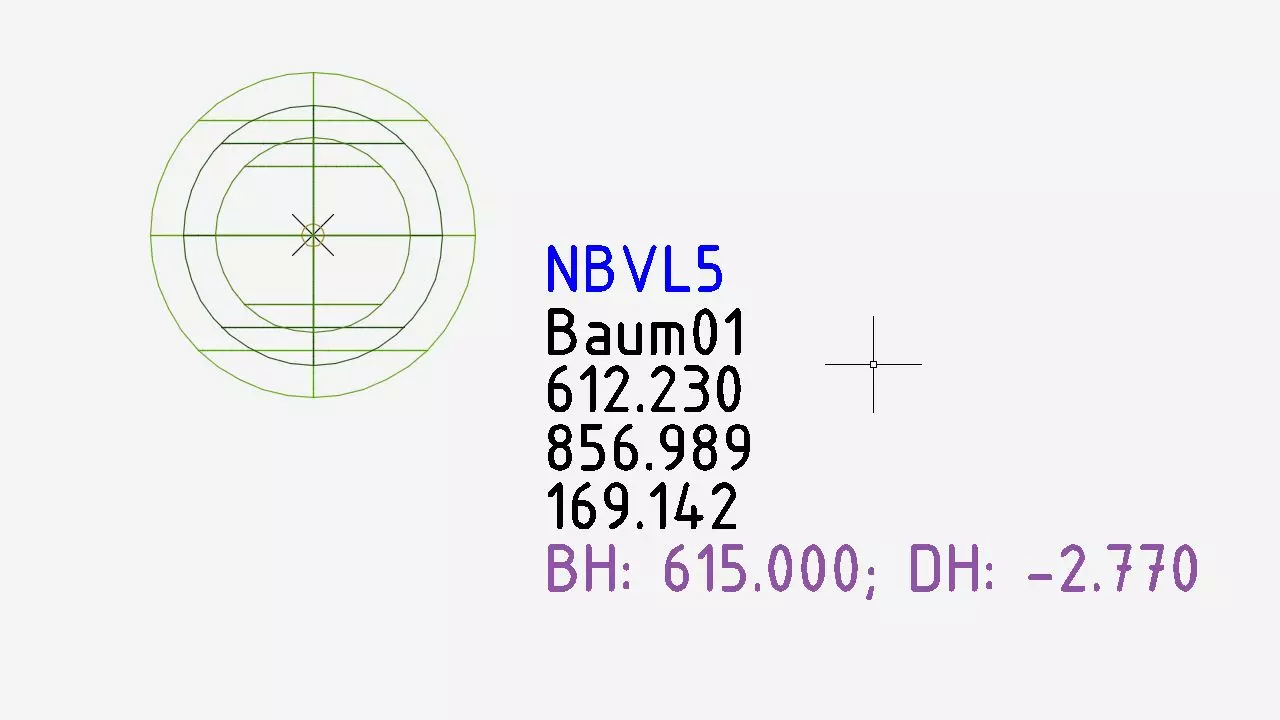

    distance reference height
