Parametrizable 3D-buildings and walls represent an ideal supplement to road planning. Without any further effort a street can be visualized. Therefore twelve predefined building- and six wall- or rather fenceprototypes are available, which can be later adjusted with the help of extensive parameters. The possible selection between roof types like hip-, flat- or gable roof, overhang, pitch and color of the roof, height and paint of walls, number of floors, number of windows per wall and type, height, width and color of the windows allows for much possibilities during the configuration. Additionally you have the chance to add a ground plus to project the buildings on an already existing DTM. The storage directly at the CAD-object of use, street and house number establishes in turn the connection to the ALKIS. All objects are composed of AutoCAD® 3D-surfaces on variable layers and form therefore an excellent starting point for the handover to the visualization programs. Even the simple visualization through angular views and shading functions in the CAD provide the planner a very good basis for presentations.

3D-buildings out of the property cadastre
As quick 1-click solution serves the generation of standard buildings directly out of the building ground-floor plan in the database. All buildings with standard values are converted with an unique image buildup. This act is very easy and provides a certain overview. It is planned, in the course of the incorporation of building parameters in the ALKIS on the part of the land surveying office, to import these data in a database and to copy the buildings realistically with the help of their characteristics like e.g. number of floors or ridge height. Therefore the cost-intensive and complex installation of additional software, for the generation of a 3D-citymodel for planning purposes, is omitted.

required modules: BB-VGR, BB-VPLV

  • signaturen_3d-haeuser_01

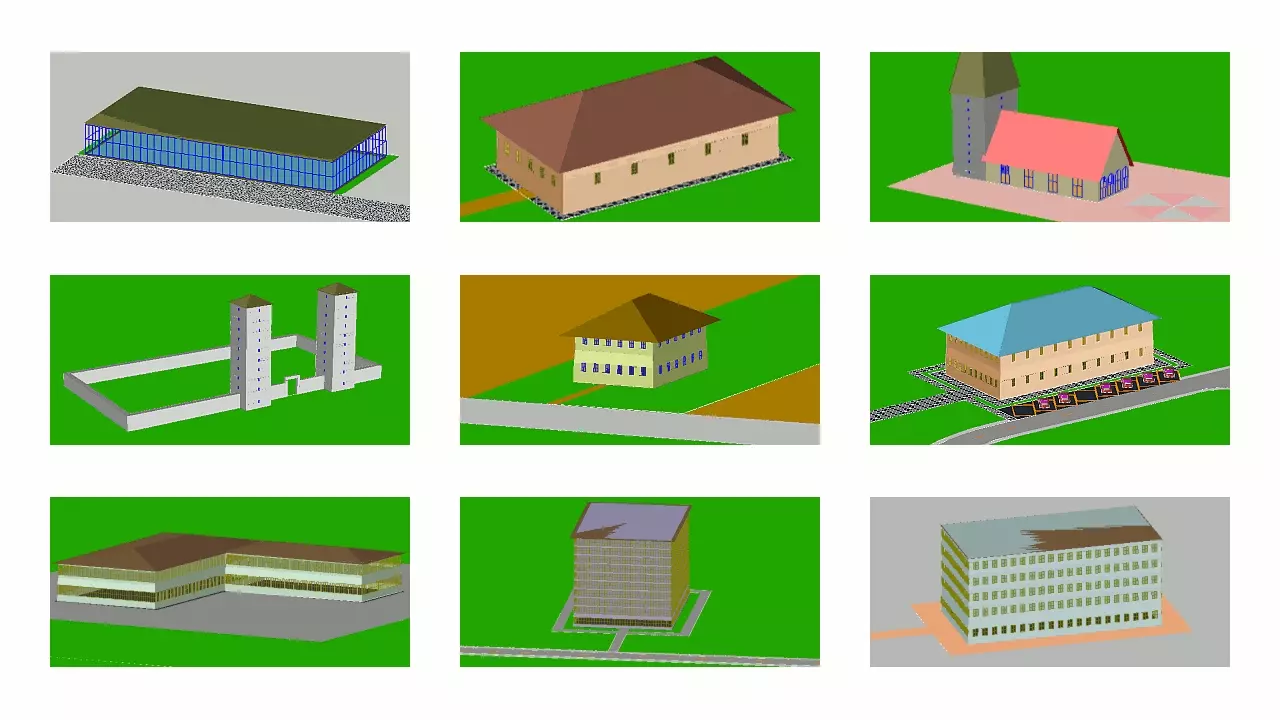

    3D-buildings

  • signaturen_3d-haeuser_02

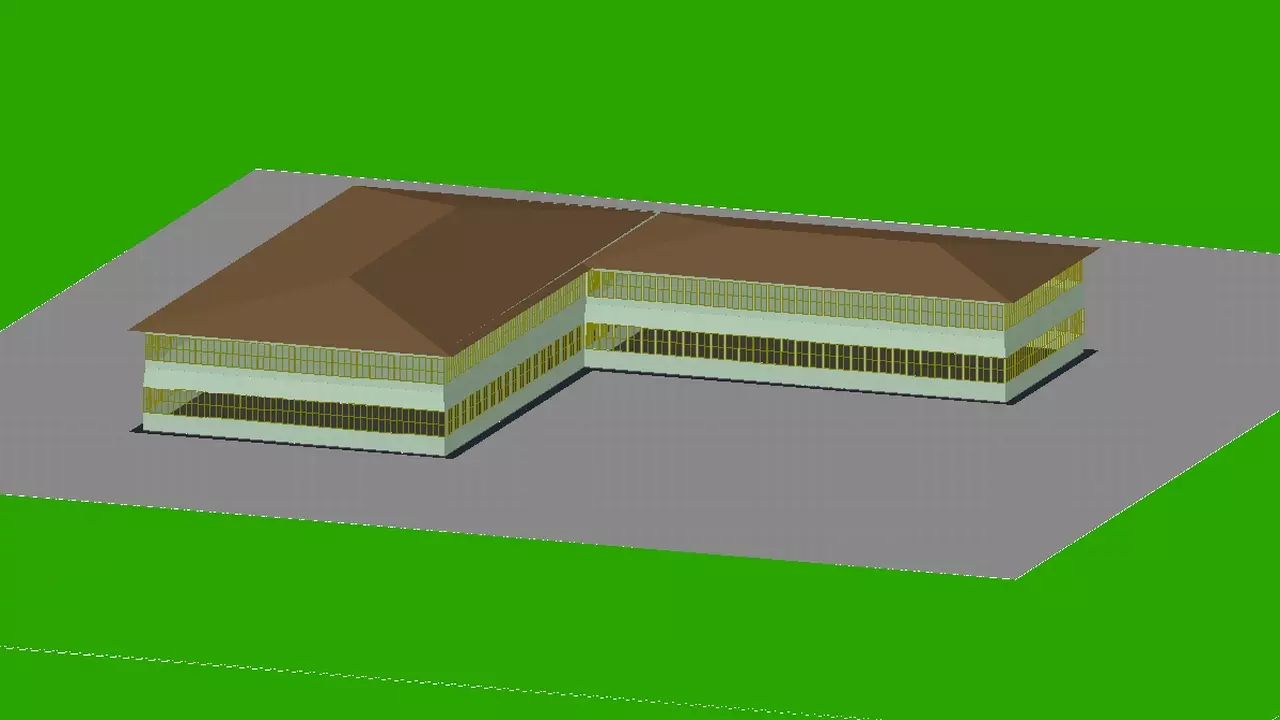

    3D-buildings: school building

  • signaturen_3d-haeuser_03

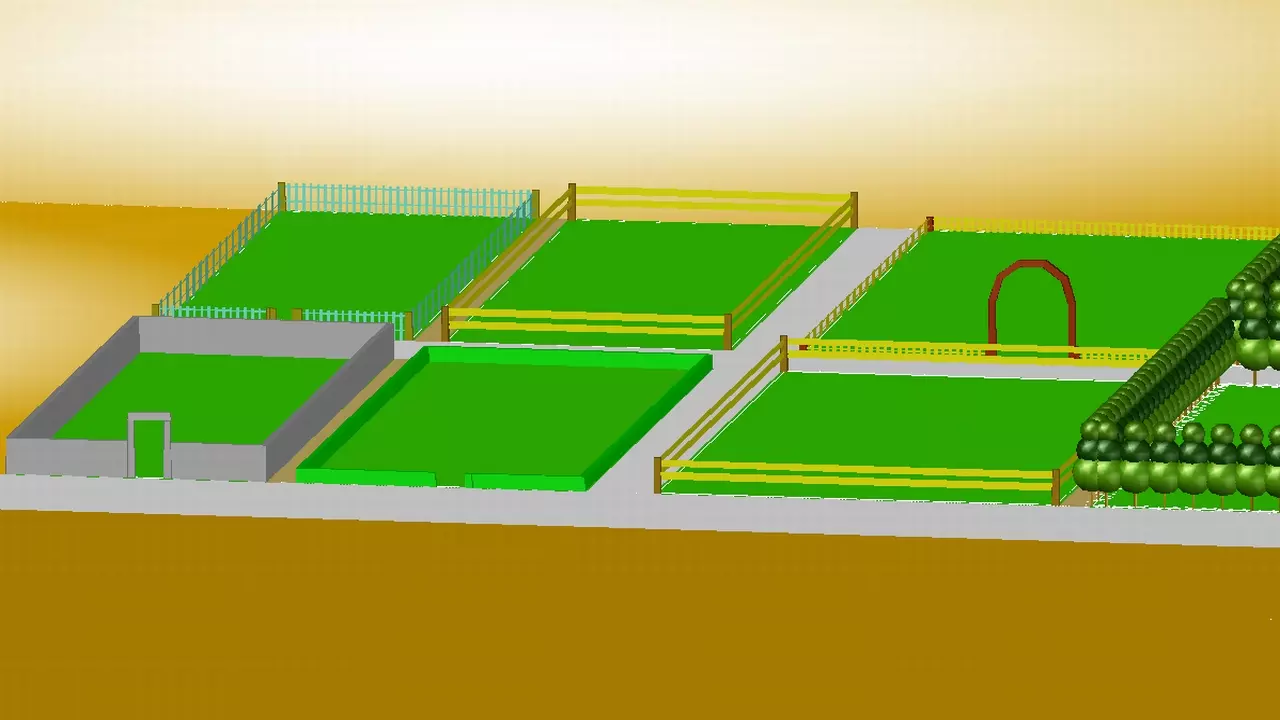

    walls, hedges and fences

  • signaturen_3d-haeuser_04

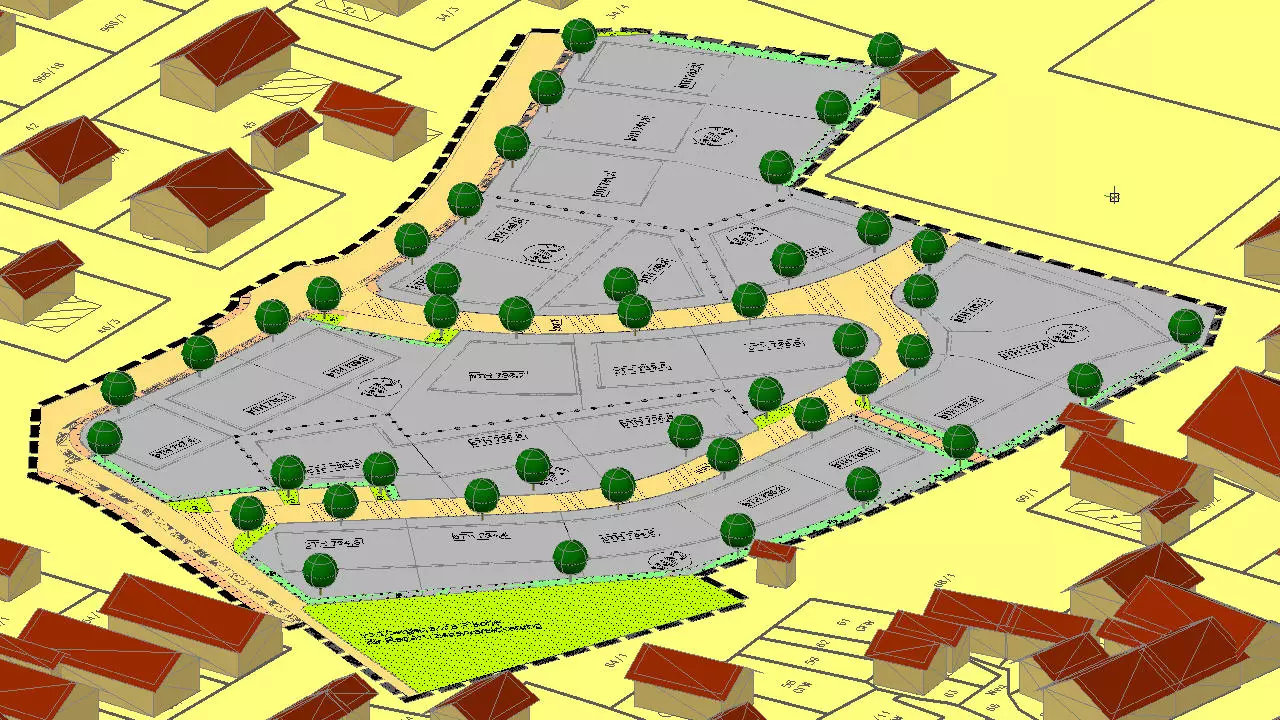

    building out of property cadastre
